CNC MACHINE & SUPPLICATION OF PRODUCTION
(CNC machine) is a machine that uses digital technology to control manufacturing tools, such as cutting, drilling, and milling, through pre-programming. These machines are used in many industries for manufacturing complicated parts with high accuracy and efficiency, regarding supplying production equipment, it includes providing machines and equipment used in manufacturing and production operations in large quantities or customized according to the customer’s needs.
Introduction about CNC machine
The CNC machine uses special software to create operating instructions for tools that perform mechanical operations. This software translates digital designs into machine-executable instructions.
CNC machine advantages
High precision
capable to produce parts with an accuracy of up to thousands of millimeters.
Repeatability
The ability to repeat the same process while maintaining the same accuracy and quality.
Diversity
It can be used in cutting, drilling, milling, and engraving.
Automation
Reducing the need for direct human intervention, this increases efficiency and reduces errors.
CNC machine types
CNC cutting machines
used in cutting metals, plastic, and wood.
CNC drilling machines
used in making holes in various materials.

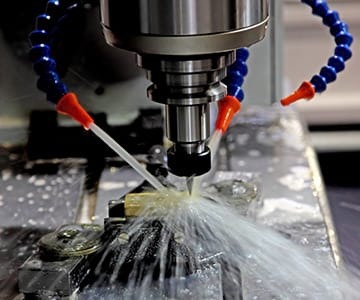

CNC Milling Machines
Used in removing excess material from a workpiece to create complex shapes.

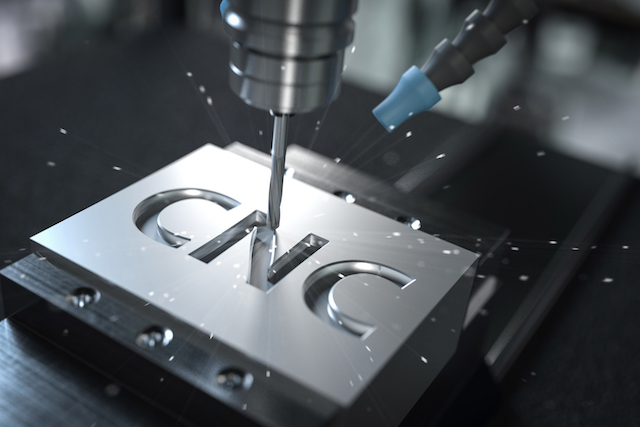

CNC engraving machines
used in engraving designs on various surfaces.
Production equipment supplying
Supplying equipment such as machines and tools needed in manufacturing and production processes such as:
Heavy machinery: such as CNC machines, presses, bending machines.
Measurement and control tools: such as digital microscopes, precision measuring tools.
Transport and handling equipment: such as cranes, conveyor belts.
Manual machines: such as drills, saws, and screwdrivers.
Safety equipment: such as safety helmets, goggles, and outdoor work gloves.
Companies that supply CNC machines and production equipment
When looking for suppliers of this equipment, it is important to choose reliable companies that provide technical support and after-sales services to ensure smooth operation and regular machines maintenance.
Haas Automation: Produces high quality CNC machines.
DMG Mori: One of the largest manufacturers of CNC machines.
Mazak: A leading manufacturer of CNC machines and advanced manufacturing tools.
FANUC known as the top robotic manufacturer and CNC control systems in the world.
CNC lathing is a machining process where the workpiece is held in a chuck and rotated while the cutting tool is moved in a linear path parallel to the axis of rotation. Material is removed from the workpiece to create the desired shape, usually cylindrical. CNC stands for computer numerical control, which means that the machine’s operations are controlled by a computer program.
Main components of CNC lathe
Lathe machine: The basic machine used in lathe operations. Holds and rotates the work.
Handle: A device that attaches the workpiece to the spindle.
Cutting tool: A tool that removes material from a workpiece. Usually made of hard materials such as carbide.
Spindle: The part of the machine that rotates the workpiece.
Tailstock: Provides additional support for the workpiece, especially longer pieces
CNC lathe advantages
Precision: CNC machines can produce parts with high accuracy and repeatability.
Efficiency: Automated processes reduce production time and labor costs.
Complex Geometric Shapes: CNC machining can create complex shapes and detailed designs.
Consistency: Ensures uniformity across multiple parts in the production process.
Common Applications
- Manufacturing columns, bars and threaded components.
- Producing automotive spare parts, aviation and medical industries.
- Creating custom components of machinery and equipment.
- Steps for CNC Machining Process
- Design: Create a CAD (computer-aided design) model of the part.
- Programming: Converting a CAD model into a CNC program (G-code) that the machine can execute.
- Setup: Install the workpiece and cutting tool on the CNC lathe.
- Machining: Run the CNC software to perform the turning process.
- Inspection: Checking the finished part for accuracy and quality.
Types of CNC lathe processes
- Turning: producing a cylindrical surface.
- Tapering: Create a conical shape.
- Grooving: The tool moves along the workpiece.
- Thread Cutting: Here, the tool moves along the outside of a workpiece to create threads in the outer surface.
- Facing: In facing, a single-point tool moves along the workpiece. This process produces flat, smooth surfaces.
- Commonly used materials:
- Metals (steel, aluminum, copper, titanium)
- Plastic (nylon, ABS, polycarbonate)
- Other materials (wood, composite materials)
Conclusion
CNC machining is a versatile and precise manufacturing process widely used in various industries to produce high quality cylindrical parts. Its aut
